Digital Multimeters & Data Acquisition Systems

Digital Multimeters (DMM)

Keithley offers the widest range of systemand benchtop digital multimeters to meet any measurement requirement. This line of digital multimeters (DMMs) addresses the requirements for student labs with basic DMMs and fast and accurate DMMs for component, module, and assembled product manufacturing testing.

Data Acquisition Systems

As a leader in test and measurement technology, Keithley provides DAQ systems that are not just high-performing but highly adaptable, meeting the needs of diverse industries from environmental monitoring to automotive testing.

STANDARD PERFORMANCE FOR THE MOST ESSENTIAL NEEDS

2110 : 5½-Digit Dual-Display Digital Multimeter

Measure and display two parameters concurrently
Sample a signal at 50,000 readings/s
Measure temperature and capacitance
Interface to a PC or a system with the USB interface or the optional GPIB interface

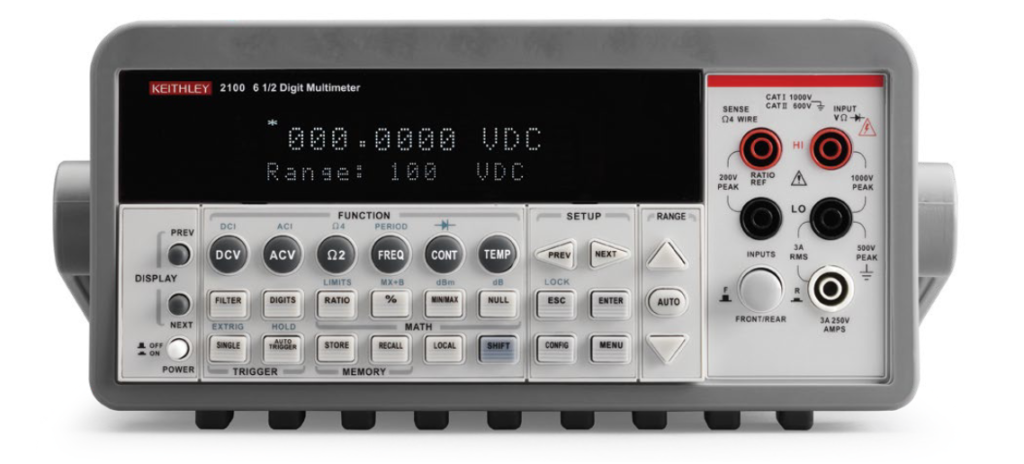

2100 6½-Digit USB Multimeter

Connect to either the front terminals or the rear terminals
Measure any parameter with fully-specified accuracies
Interface to a PC with the USB-TMC compliant protocol

ENHANCED PERFORMANCE WITH A TOUCHSCREEN GRAPHICAL USER INTERFACE

DMM6500 6½-Digit Bench/System Digital Multimeter

Capture complex signals and transients with up to 1 Msample/s 16-bit digitizing
Make low level measurements with 100 nV, 10 pA, and 1 µΩ sensitivities
Measure with superior 0.0025% basic, 1-year, DC Volt accuracy and 0.0075% basic, 1-year resistance accuracy
Analyze data and display waveform plots on the 5 inch (12.7 cm) touchscreen display
Measure power circuit current up to 10 A
Interface to a PC with LAN/LXI and USB-TMC interfaces or optional GPIB or RS-232 interfaces
Test up to 10 DUTs in one test setup with the optional plug-in scanner cards

NO COMPROMISE: HIGH SPEED AND HIGH ACCURACY

DMM7510 7½-Digit Graphical Sampling Multimeter

Capture IoT wireless device load current transmit bursts wit 18-bit, 1Msample/s digitizing
Measure ultra-low sleep mode currents on processors and products with 1 pA current sensitivity
Hold DUTs to tight test tolerances using voltage measurements with accuracies as low as 14 ppm
Store up to 27.5 million readings for profiling load current waveforms and transient waveforms
Take measurements as fast as 26,000 readings/s for high throughput testing
Get fast insight into waveform characteristics with the 5 inch (12.7 cm) touchscreen display
Execute custom test scripts and control other instruments with the built-in test script processing language
Interface to a PC with either LXI LAN, USB, or GPIB interfaces

HIGH ACCURACY WITH HIGH RESOLUTION

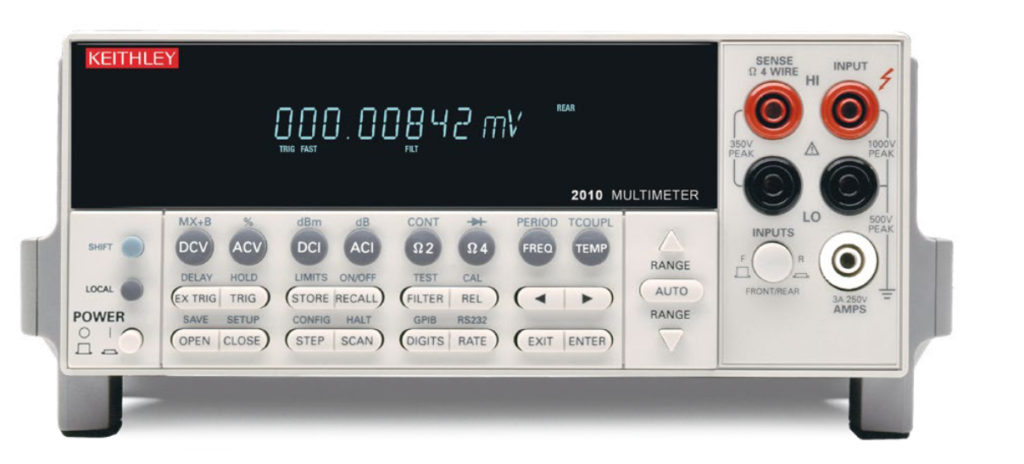

2010 Low Noise 7½-Digit Autoranging Multimeter

Resolve low voltages with the 100 nVrms noise floor
Make automatic ratio measurements on two voltages with the front and rear inputs
Minimize device self-heating with low power resistance measurements
Avoid breaking down oxides or films on relay contacts and connectors with the dry circuit test function
Test up to 10 DUTs with an optional voltage or temperature plug-in scan card
Interface to a PC with the RS-232 or the GPIB interface

2001 7½-Digit High Performance Multimeter

Capture spikes as narrow as 1µs with the peak detector function
Perform in-circuit current measurements without breaking the circuit
Automatically separate components based on measurement limits using the Binning function
Measure up to 10 channels of voltage or 9 channels of temperature with the optional plug-in scanner cards
Make high accuracy, 2 MHz bandwidth AC voltage measurements for control system analysis
Connect to a PC with the GPIB interface

2001 8½-Digit High Performance Multimeter

Make the most accurate voltage measurements with tolerances as narrow as 10 ppm
Capture spikes as narrow as 1 µs with the peak detector function
Perform in-circuit current measurements without breaking the circuit
Automatically separate components based on measurement limits using the Binning function
Measure up to 10 channels of voltage or 9 channels of temperature with the optional plug-in scanner cards
Make high accuracy, 2 MHz bandwidth AC voltage measurements for control system analysis
Connect to a PC with the GPIB interface

2750 Multimeter/Switch Systems

Build a test system as large as 200 differential input channels
Design a versatile system using up to 5 different models of the 7700-series plug-in switch modules in a 2750
Measure low resistive components with 1 µΩ sensitivity
Use the dry circuit function to protect sensitive devices from damage and to minimize self-heating errors during testing
Make measurements with the high performance 6½-digit DMM
Interface to a PC with the GPIB or RS-232 interface

PRECISION MEASUREMENT DATA ACQUISITION SYSTEMS

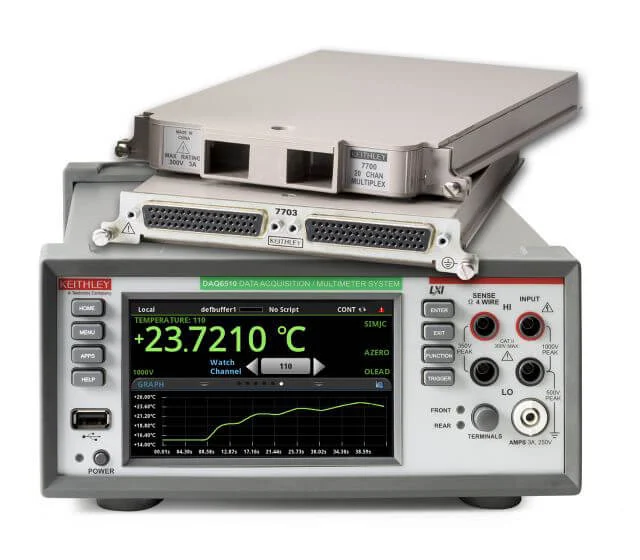

DAQ6510 Data Acquisition and Logging, Multimeter System

Set up a test in minutes with the 5-inch (12.7 cm) touchscreen display and graphical user interface
Test low power devices with current sensitivity down to 10 pA
Save upgrade costs by using the same plug-in switch modules as the 2750
Monitor up to 80 channels of thermocouple, RTD, or thermistor temperature measurements
Monitor fast-changing signals with the 1 Msample/s, 16-bit digitizer
Make high precision measurements with the high performance 6½-digit DMM
Interface to a PC with either LAN LXI or USB or add an RS-232 or a GPIB option
Control other instruments and execute a test with the built-in scripting code and the Test Script Processor (TSP^®), TSP-Link^® I/O option

3706A System Switch/Multimeter

Build a test system with as many as 576 two-wire or 720 one-wire multiplexed channels or with up to 2,688 matrix crosspoints
Fill up to 6 slots with 10 different 3700 Series plug-in switch modules
Make the most accurate measurements with the 7½-digit DMM and 13 measurement functions
Maximize throughput with measurement speeds up to 14,100 readings/s
Minimize time-consuming interaction with a PC by using the 3706A as a master system controller using Keithley’s internal Test Script Processor (TSP^™) software
Control other LAN-based instruments with the TSP-Link interface
Interface to a PC with LAN/LXI, USB, or GPIB interfaces
