Tektronix signal generators cover a wide range of applications from replicating sensor signals to creating high-speed serial data or RF signals with digital modulation applied. Each versatile signal generator can create a virtually unlimited number of signals—analog or digital, ideal or distorted, standard or custom. From the world’s only direct synthesis of high-speed serial data waveforms for simplified receiver testing to the world’s most versatile arbitrary function generator for common stimulus signals to flexible RF signal generators for analog and digital applications, Tektronix has a signal generator to meet any debugging challenge.
Tektronix arbitrary function generators offer accurate reproduction of standard waveforms, arbitrary waveform capability, and signal impairments.
Generate complex waveforms with the best overall signal fidelity, memory depth, and sample rate.
Tektronix function generators are best-in-class instruments that deliver uncompromised frequency agility and ensure signals are accurately reproduced every time.
With pre-loaded standard waveforms, arbitrary waveform capability, and signal impairment options, Tektronix function generators support a wide range of applications and provide an economical solution for applications that don’t require the advanced capabilities of an arbitrary waveform generator.
| Model | Analog Channels | Sample Rate | Bandwidth | Vertical Resolution | Record Length | Output Frequency Range | Base Price | |
|---|---|---|---|---|---|---|---|---|
AFG31000 Arbitrary Function Generator
| 1 – 2 | 250 MS/s – 2 GS/s | 25 MHz – 250 MHz | 14-bit | 16 MSa/ch | 25 MHz – 250 MHz | ₨328,000 | |
AFG1000 Arbitrary/Function Generator
| 2 | 125 MS/s – 300 MS/s | 25 MHz – 60 MHz | 14-bit | 8k points – 1M points | 25 MHz – 60 MHz | ₨97,600 | |
AFG2000 Arbitrary / Function Generator
| 1 | 250 MS/s | 20 MHz | 14-bit | 128k points | 20 MHz | ₨215,000 |

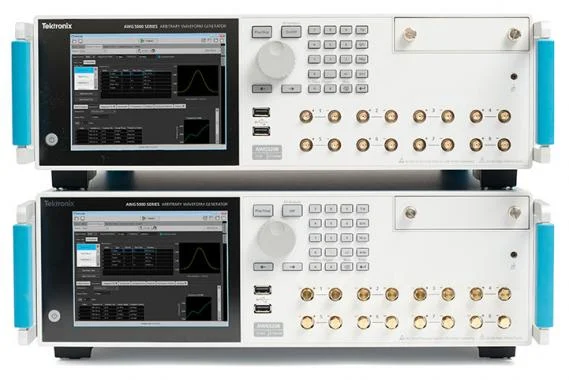

Meet the most demanding signal generation needs at an affordable price with the high-fidelity AWG5200 Arbitrary Waveform Generator. With multi-unit synchronization, you can scale up to 32 channels. The AWG5200 is ideal for advanced research, electronic test and radar, and electronic warfare system design and test.
The AWG70000B Series Arbitrary Waveform Generator makes it easy to customize, generate, and sequence an infinite variety of high-precision signals for design, testing, and operation of complex components, systems, and experiments.
| Model | Channels | Vertical resolution | Bandwidth | Frequency | Sample rate | Record length | ||
|---|---|---|---|---|---|---|---|---|
 | AFG31000 series arbitrary function generator | 1-2 | 14 bits | 25 MHz to 250 MHz | 25 MHz to 250 MHz | 250 MS/s – 2 GS/s | 16 MSa/ch | Get Quote |
| AFG1022 arbitrary function generator | 2 | 14 bits | 25 MHz | 1 uHz to 25 MHz | 125 MS/s | 8k points | Get Quote | |
| AFG1062 arbitrary function generator | 2 | 14 bits | 60 MHz | 1 uHz to 60 MHz | 300 MS/s | 1M points | Get Quote | |
| AFG2000 arbitrary function generator | 1 | 14 bits | 20 MHz | 20 MHz | 250 MS/s | 128k points | Get Quote | |
 | ||||||||
| AWG5202 arbitrary waveform generator | 2 | 16 bits | 2 GHz (at -3 dB x) | Direct DC Out: 1.5Vp-p Diff Direct AC Out: -17 to -5 dBm single-ended, BW 10MHz to 2GHz (standard) Amp AC Out: -85 to +10 dBm single-ended, BW 10MHz to 2GHz (option) | 1.5 KS/s – 10 GS/s (4 GHz) | – | Get Quote | |
| AWG5204 arbitrary waveform generator | 4 | 16 bits | 2 GHz (at -3 dB x) | Direct DC Out: 1.5Vp-p Diff Direct AC Out: -17 to -5 dBm single-ended, BW 10MHz to 2GHz (standard) Amp AC Out: -85 to +10 dBm single-ended, BW 10MHz to 2GHz (option) | – | – | Get Quote | |
| AWG5208 arbitrary waveform generator | 8 | 16 bits | 2 GHz (at -3 dB x) | Direct DC Out: 1.5Vp-p Diff Direct AC Out: -17 to -5 dBm single-ended, BW 10MHz to 2GHz (standard) Amp AC Out: -85 to +10 dBm single-ended, BW 10MHz to 2GHz (option) | – | – | Get Quote | |
| AWG70002B arbitrary waveform generator | 2 | 8, 9, or 10 bits | Up to 13.5 GHz | 10 GHz | 25 GS/s | 2 GS, 16 GS (Optional) | Get Quote | |
| AWG70001B arbitrary waveform generator | 1 | 8, 9, or 10 bits | Up to 15 GHz | 20 GHz | 50 GS/s | 2 GS, 32 GS (Optional) | Get Quote |
