1.25 kW to 10,000 kW+ • Made in the USA
The broadest range of high-quality programmable power supplies & Loads
Utilizing the rugged current-fed power processing topology, spanning over 400,000 configurations from 1.5 kW to 10,000 kW+ with numerous standard options, Magna-Power’s DC power supplies combine reliability with the flexibility of choice.
Utilizing Magna-Power’s MagnaLINK™ distributed DSP digital control platform combined with conservative temperature ratings & cooling methods, MagnaLOADs provide reliable DC electronic with wide full-power operating range 1.25 – 20 kW+
Designing and delivering rugged programmable power products, built in the USA to the highest quality standards through a vertically integrated manufacturing process.
Magna-Power’s MagnaDC product line of programmable DC power supplies has evolved over 40 years, incorporating the latest innovations in power electronics and building upon Magna-Power’s signature current-fed power processing topology. Using a common control platform, the product line spans over 160,000 configurations, covering an extremely wide range of voltages and currents, allowing users to accurately select an appropriately rated product without needing to oversize their power supply. Standard options are offered to tailor performance or cooling for the intended application.
All MagnaDC programmable DC power supplies feature a common SCPI command-set and come standard with LabVIEW drivers, IVI drivers, software GUI, safety interlock, and isolated external I/O port. In addition, all Magna-Power products are designed to operate at peak ratings, continuously, at 50°C.
Key Product Line Features

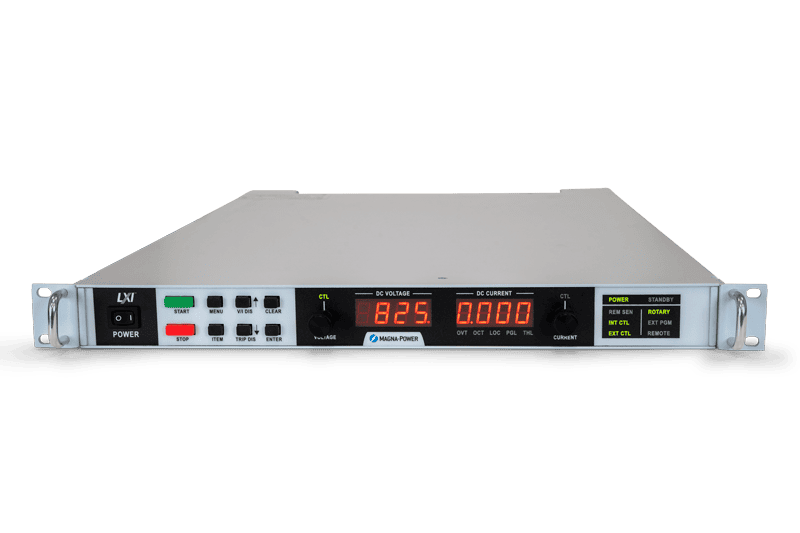

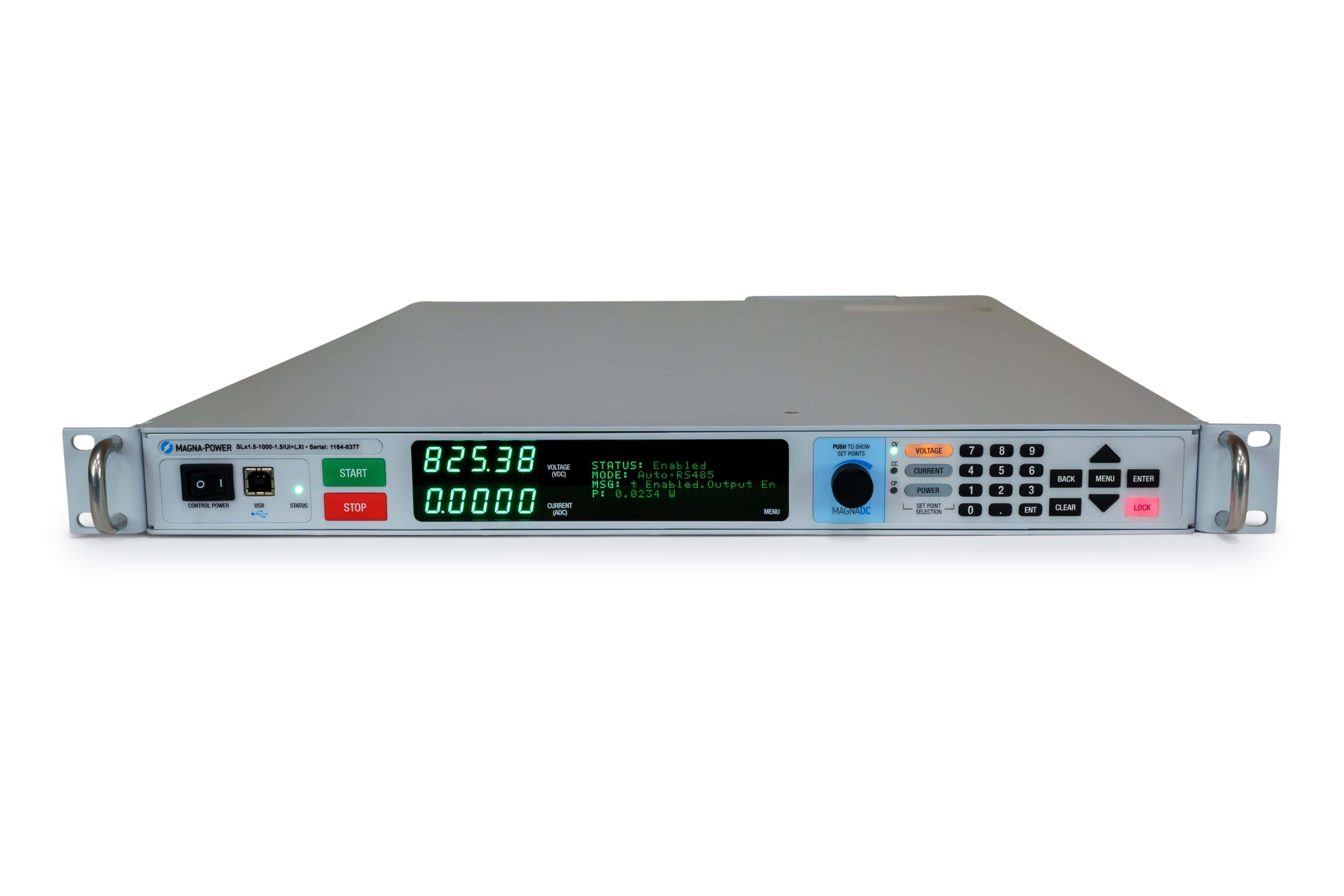

1.5 kW to 10 kW • 1U
Number of Models: 171
Voltage Range: 5 Vdc to 1000 Vdc
Current Range: 1.5 Adc to 250 Adc
1.5 kW to 10 kW • 1U
Number of Models: 127
Voltage Range: 5 Vdc to 1500 Vdc
Current Range: 1.5 Adc to 250 Adc

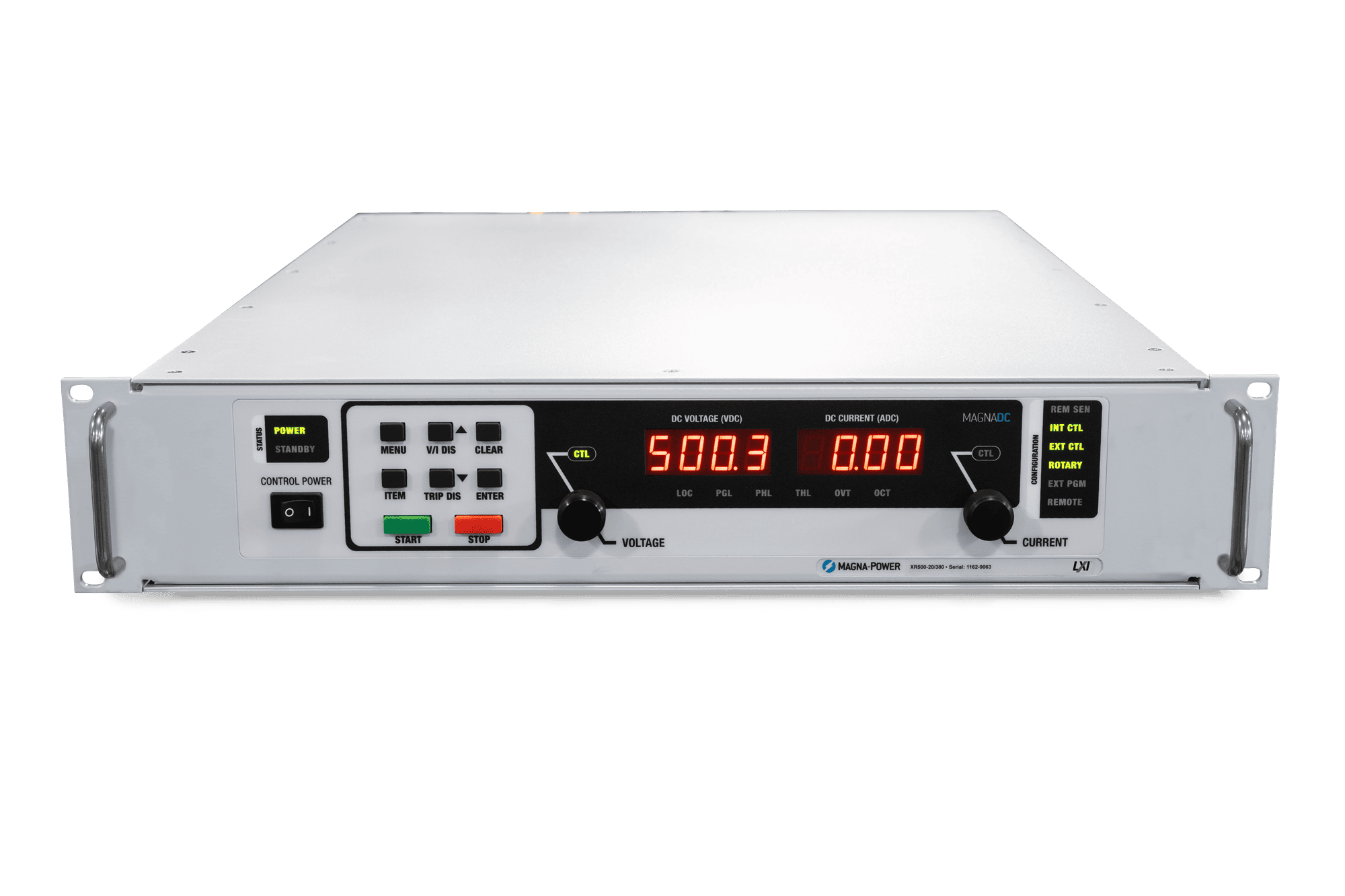

2 kW to 10 kW • 2U
Number of Models: 39
Voltage Range: 2Vdc to 10,000 Vdc
Current Range: 0.2 Adc to 600 Adc

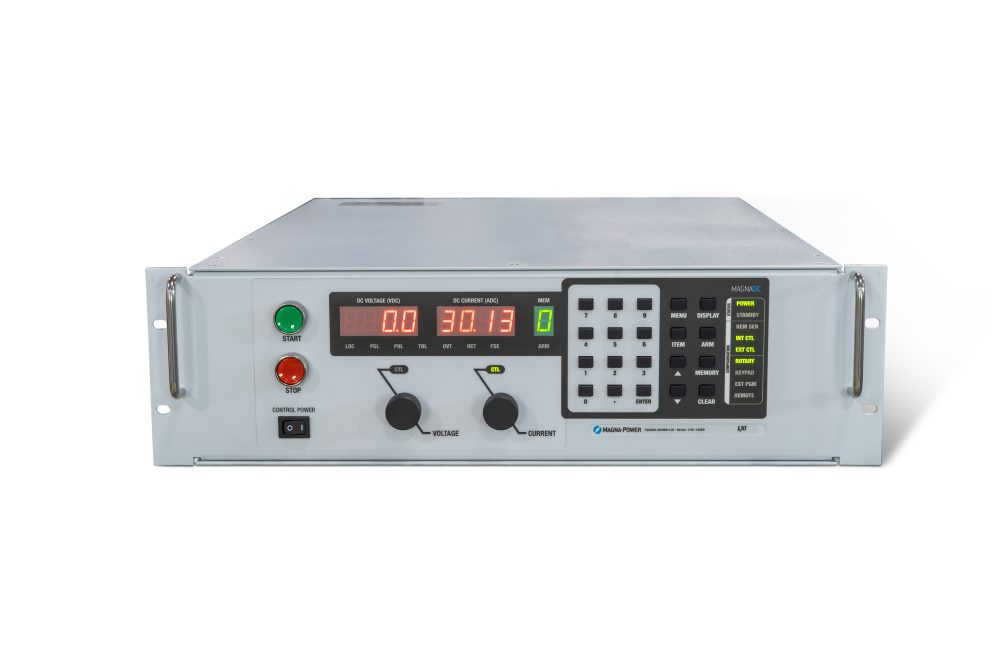

5 kW to 100 kW • 3U to 16U
Number of Models: 275
Voltage Range: 5 Vdc to 6,000 Vdc
Current Range: 1.2 Adc to 10,000 Adc

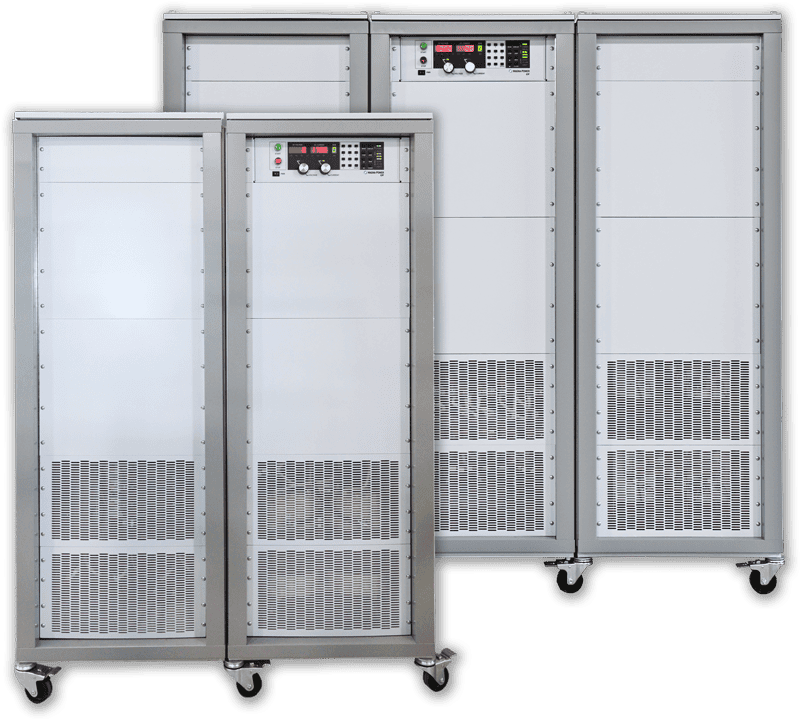

150 kW to 3 MW+ • 60U to 90U+
Number of Models: 49
Voltage Range: 32 Vdc to 6000 Vdc
Current Range: 25 Adc to 6000 Adc (per unit)

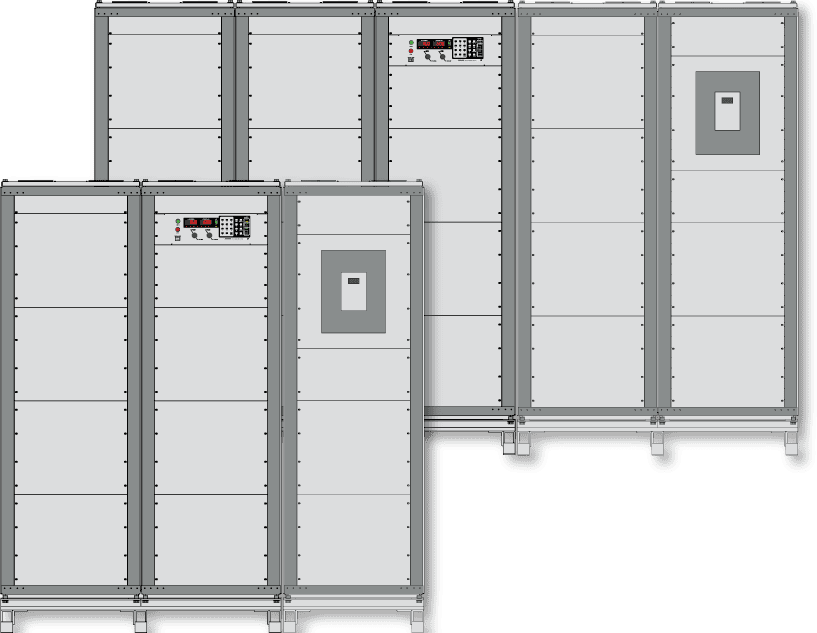

500 kW to 10 MW+
Number of Models: 38
Voltage Range: 100 Vdc to 6000 Vdc
Current Range: Up to 5000 Adc (per unit)

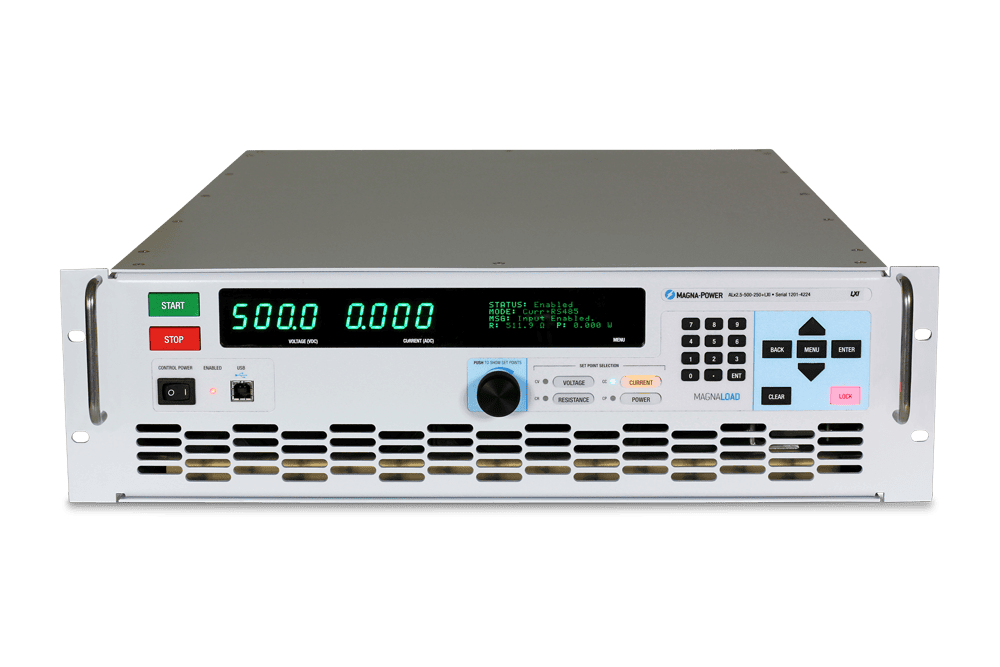

1.25 kW to 20 kW • 3U to 24U
Number of Models: 27
Voltage RangeL: Up to 1000 Vdc
Current Range: Up to 4800 Adc
