PicoScope 4225A and 4425A oscilloscopes, provides you with:
All our automotive PicoScopes have the features that have already helped technicians around the world with vehicle diagnostics:

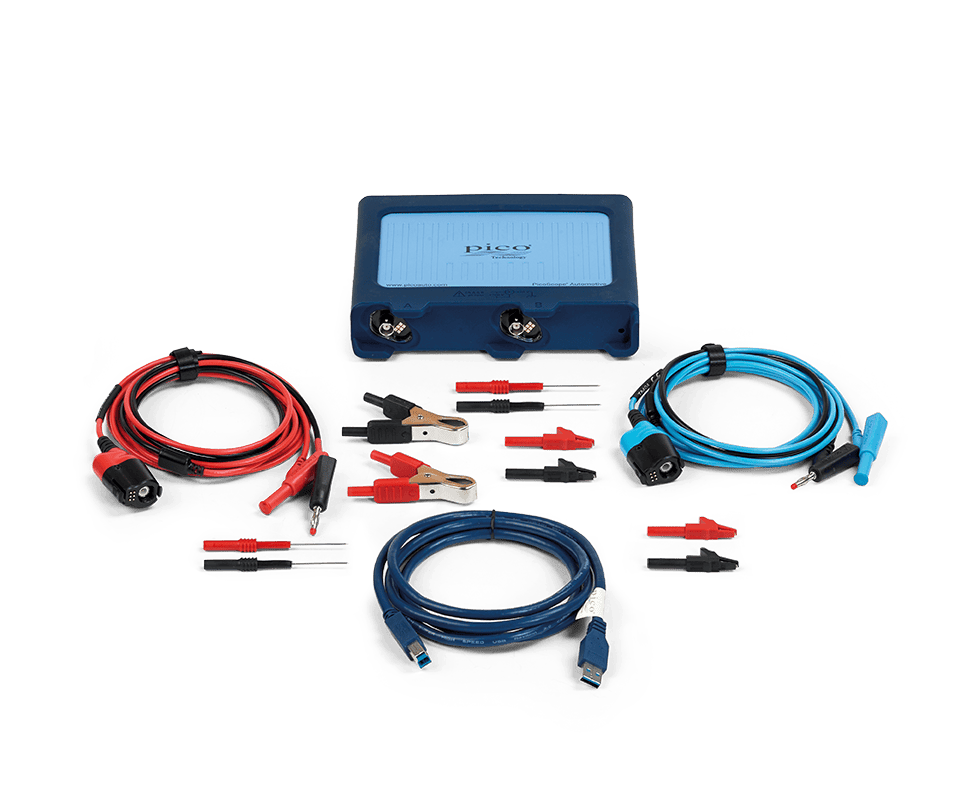

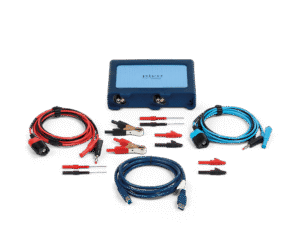

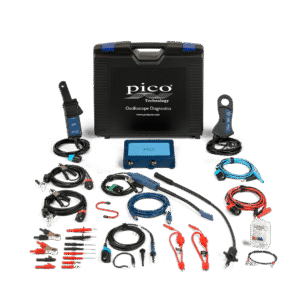

| 2-Channel Starter Kit | 2-Channel Standard Kit |
|---|---|

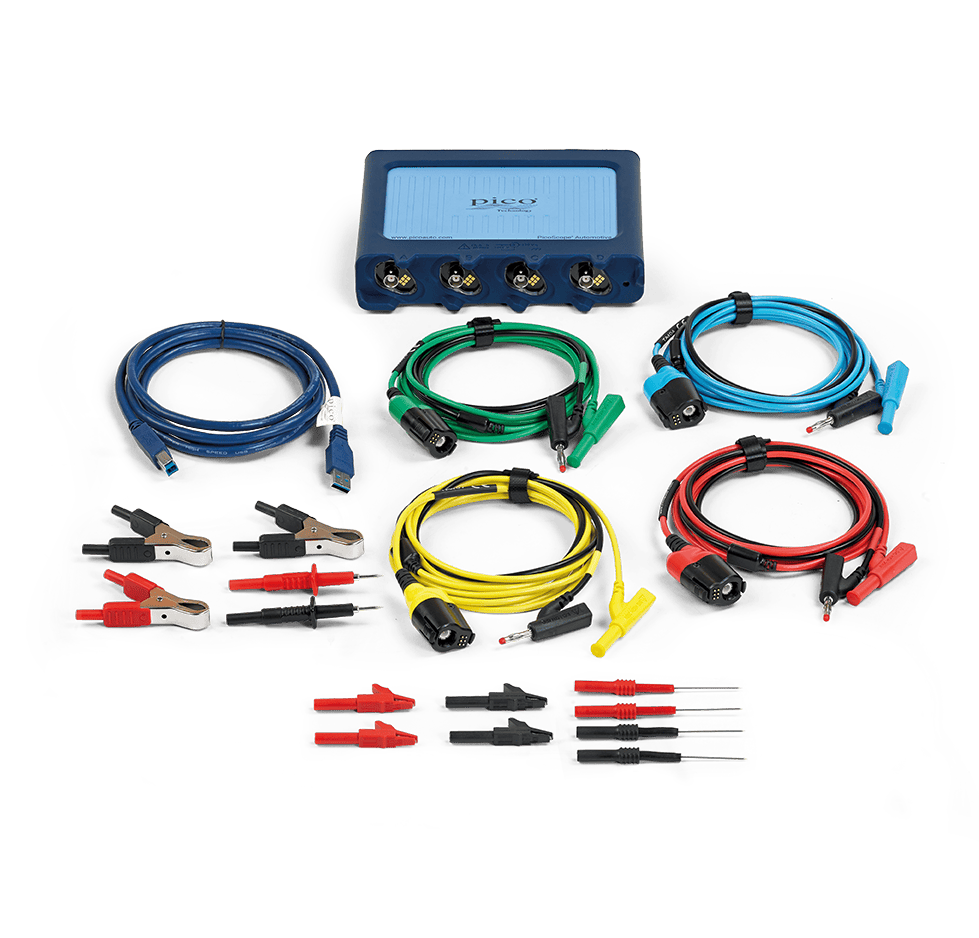

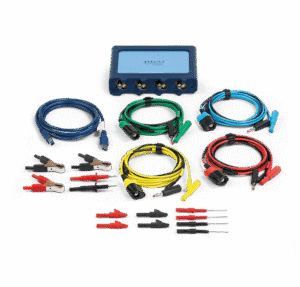

| 4-Channel Scope only | 4-Channel Starter Kit |

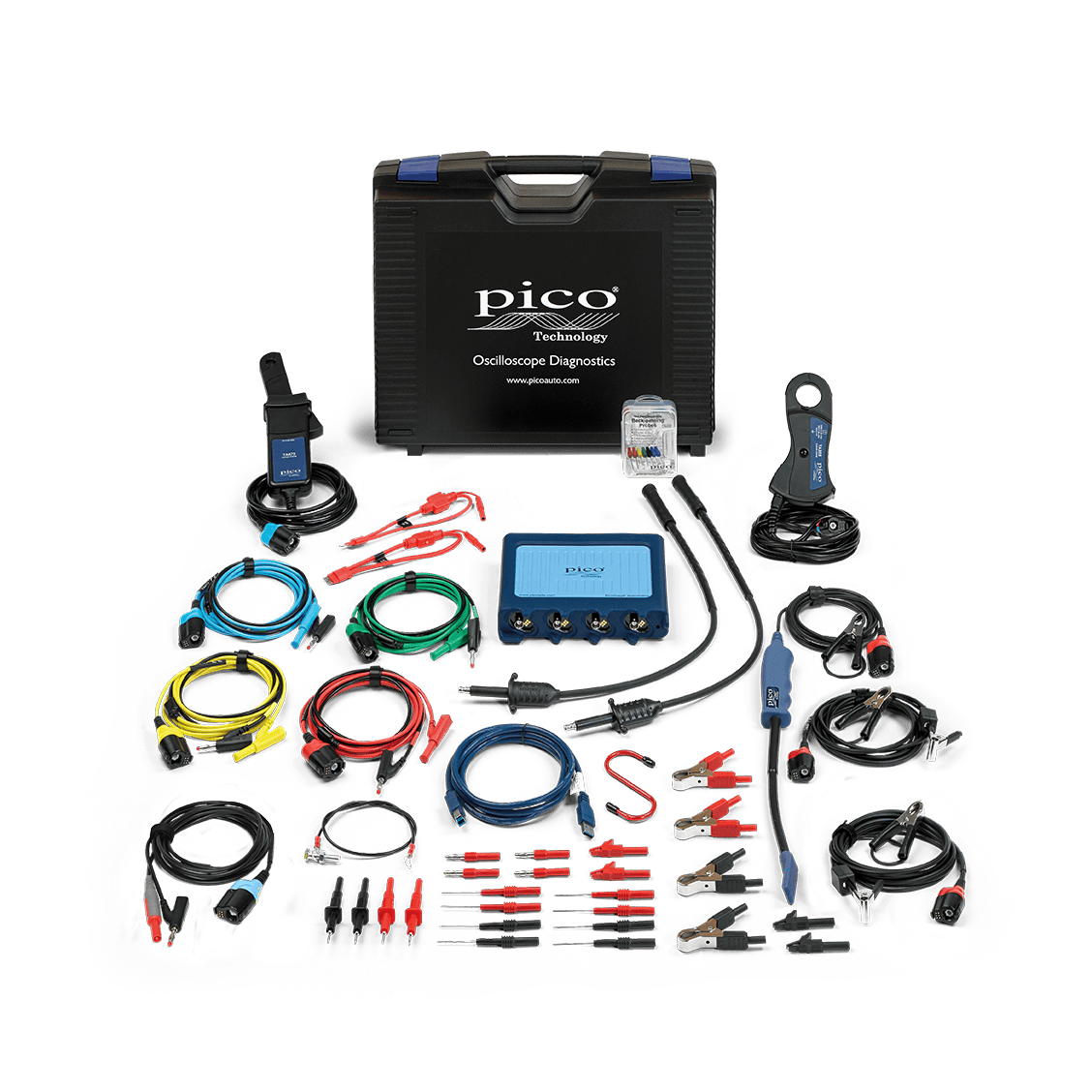

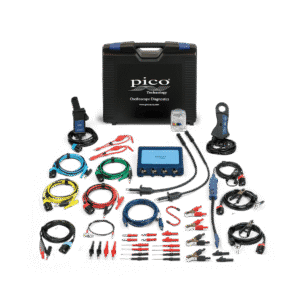

| 4-Channel Standard Kit | 4-Channel Assessors Kit |

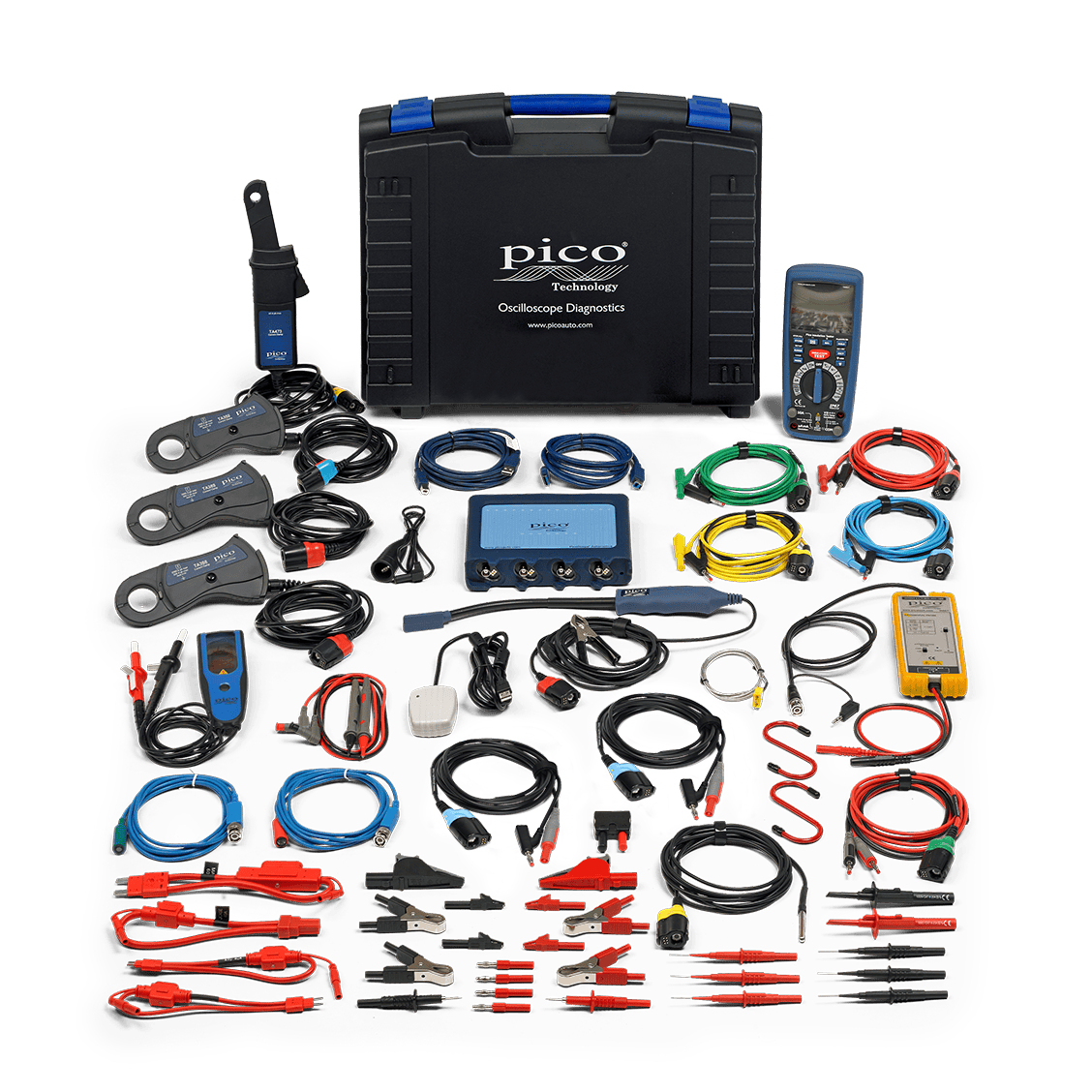

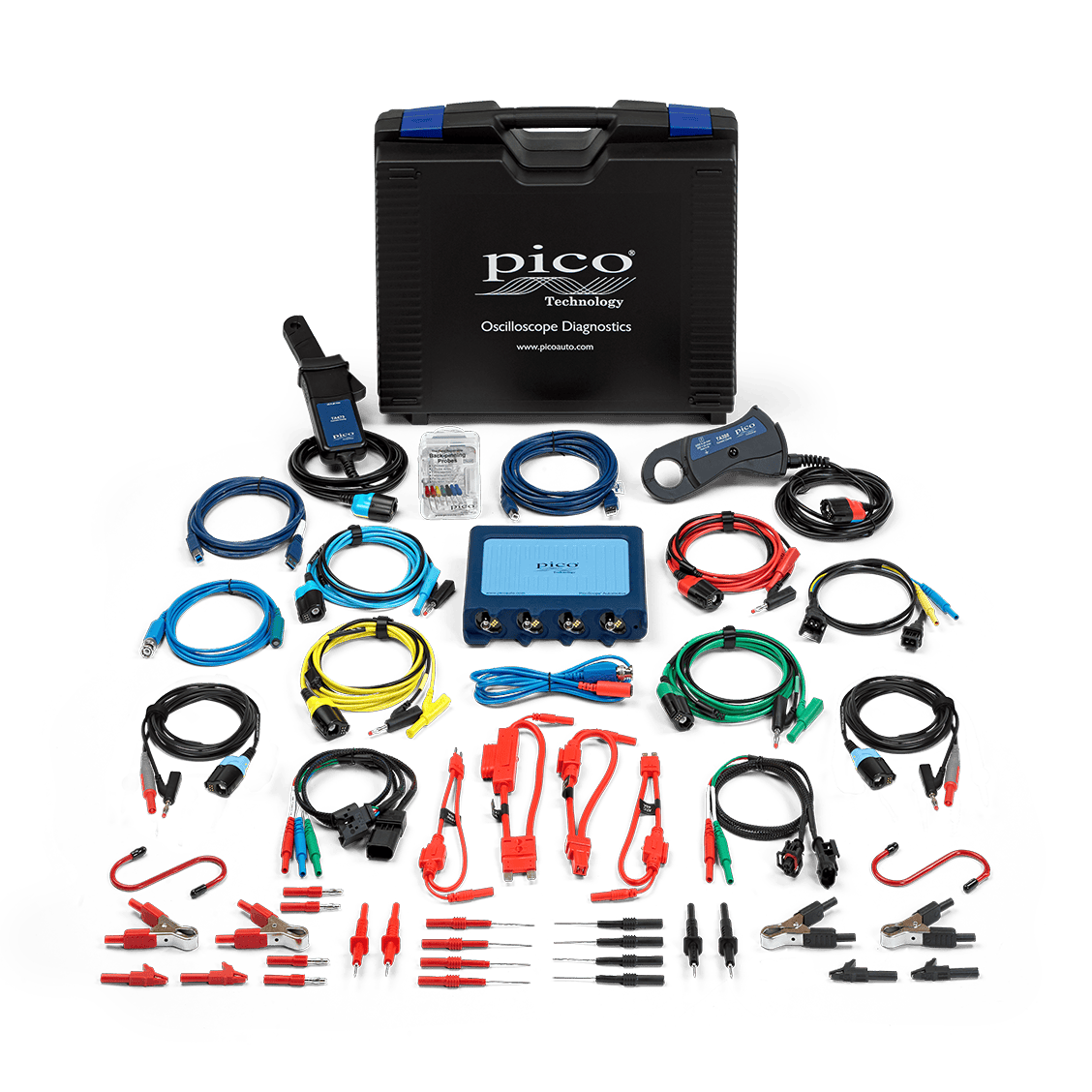

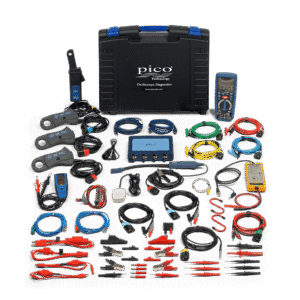

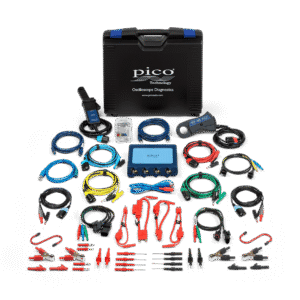

| 4-Channel Diesel Kit | 4-Channel EV Kit |
| 4-Channel Advanced Kit | 8-Channel Professional Kit |
|---|---|
| 4-Channel Master Kit . | 8-Channel Scope only |
| Off-Highway Entry Kit | Off-Highway Elite Kit |
| Off-Highway Expert Kit | 4-Channel Master Kit |
A complete 3-phase motor winding resistance test in less than one minute!
The MT03A Milliohm & Motor Tester is a revolutionary device capable of changing the way low-resistance testing is performed. The MT03A offers resistance testing of all windings on a 3-phase motor in under a minute, producing highly accurate results that can automatically compensate for temperature using the included sensor.
| Resistance measurement range | Autoranging up to 2 Ω |
| Resistance resolution | 10 µΩ |
| Resistance accuracy (typical) | ±(0.5% + 100 µΩ) |
| Temperature resolution | 0.2 °C (0.36 °F) |
| Temperature accuracy (typical) | ±0.5 °C (0.9 °F) |
| Input protection | ±30 V |
| Weight | <0.5 kg |
| Dimensions | 190 x 141 x 42 mm |
| Connection | USB (4.5 m USB2 cable supplied |
| PC requirements | Windows 10 or 11 (64-bit application) |
